Schrader Valve Air Tank (W112/W109) and Pressure Reguloator (W100), Mercedes Benz A1123200658

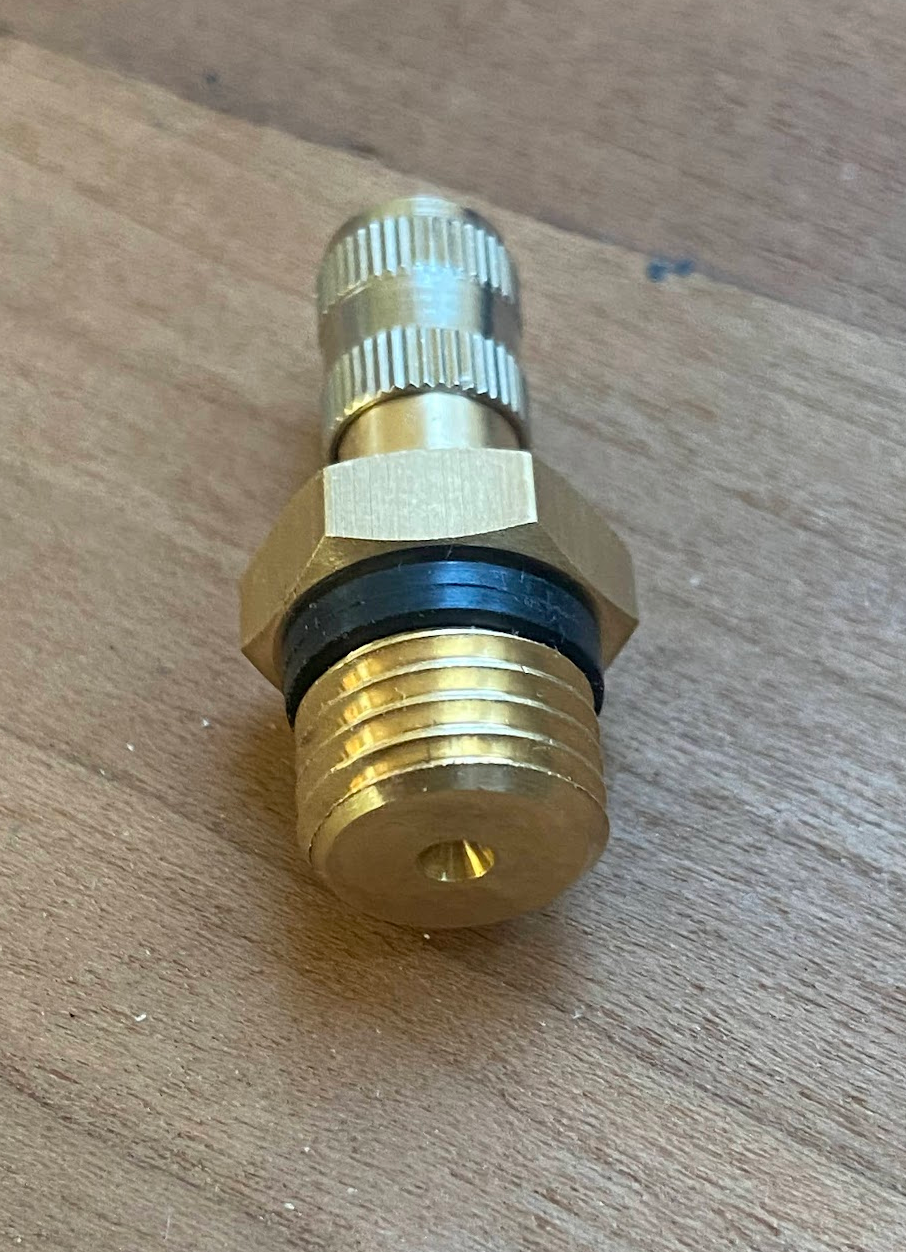

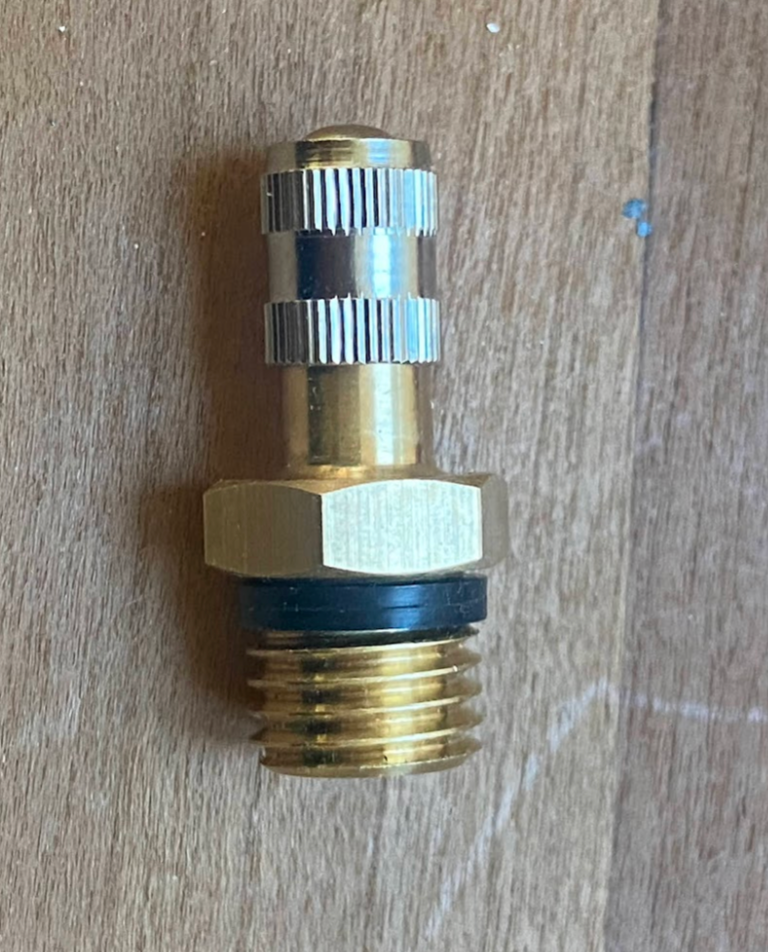

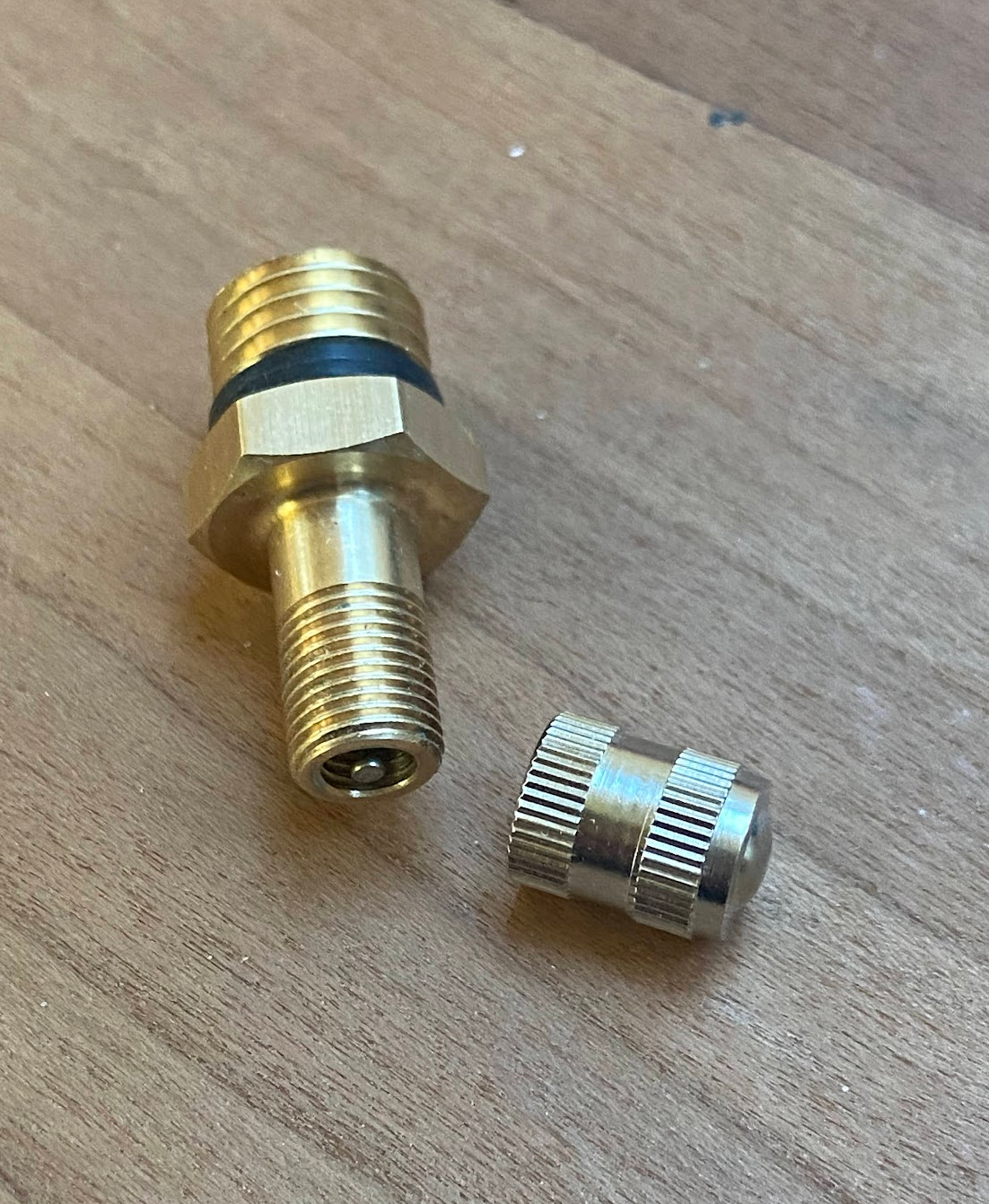

This is the original MB Schrader Valve with M12x 1.5 thread, throttle bore .
It comes with the Seal Ring LF011 (outer seal).
The Schrader Valve is used for pressurizing the Air Suspension with shop air.
W112 and W109 cars have this valve on the air tank. W100 cars have the Schrader Valve on the Pressure Regulator.
The Schrader Valve can be used to lift the air suspension car during renovation when the air suspension is offline. Simply install a Schrader Valve in each air spring (4 Schrader Valves needed) and pressurize the air spring. You may about 10 bar shop air to lift the car off the ground or you can use a floor check, lift the car and inflate with 7 -8 bar.
Mercedes Benz Part Number
A1123200658
A 112 320 0658
A 112 320 06 58
1123200658
112 320 0658
112 320 06 58
